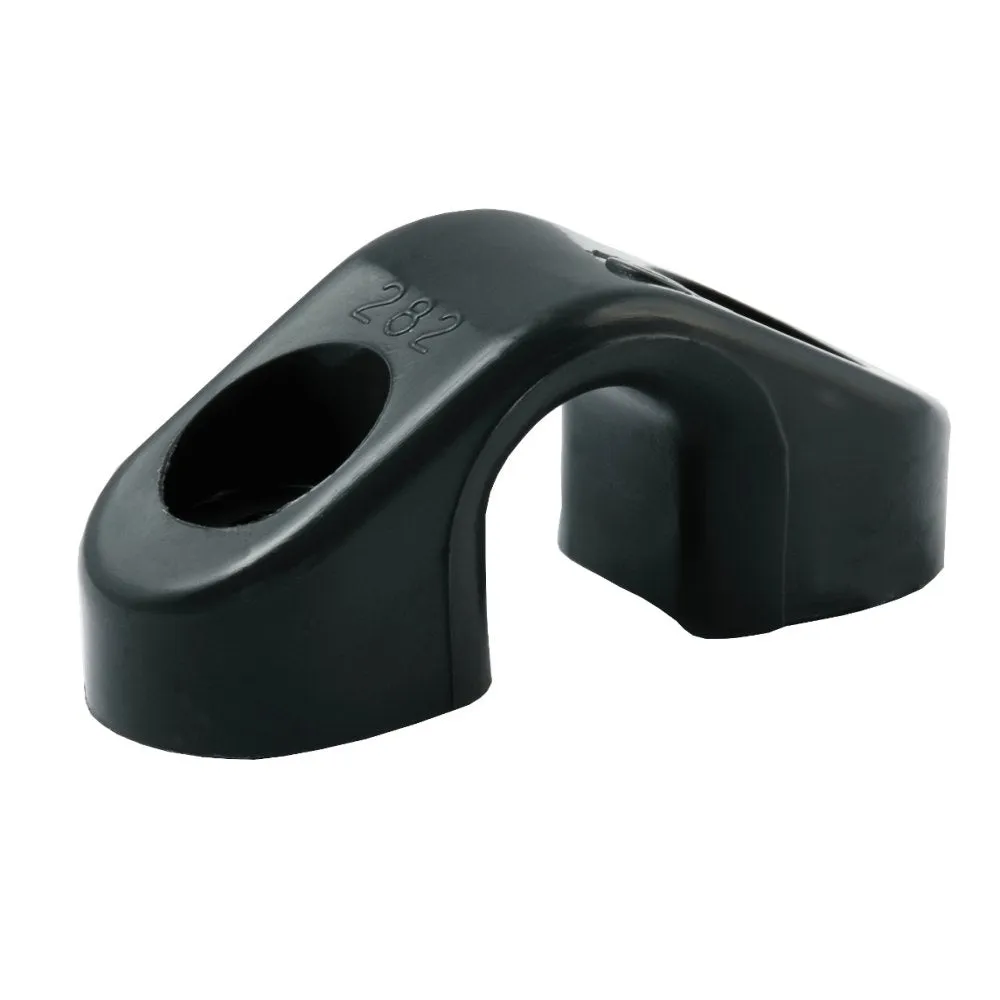

Allen A.282 (grey) Boom & Traveller Eye for the Laser®
See related items for fixing screw and captive nut.
The Engineering Drawing for Allen A.282 can be found
Allen A.282 Fairlead Properties
| Material | Acetal |
| Inside Diameter | 9 mm |
| Fixing Hole Centres | 24mm |
| Fixing Hole Size | 5 mm |
| Overall Length | 41 mm |
| Overall Width | 14.5 mm |
| Overall Height | 18 mm |
| Weight | 6 grams |
| MPN | A.282 |
Attaching eyes to a Laser/ILCA boom:
Rivets are the standard/factory method of affix the plastic eye to the boom. The holes in the boom are 4.8mm 3/16" dia. but can enlarge due to corrosion etc. If the holes are in good condition then a new 4.8mm dia. rivet can be re-used. See this link for a complete list of rivets used on the Laser/ILCA - see
For a more secure method to affix the eye, it is suggested a M5 nut/washer and bolt is used - see blog article:
